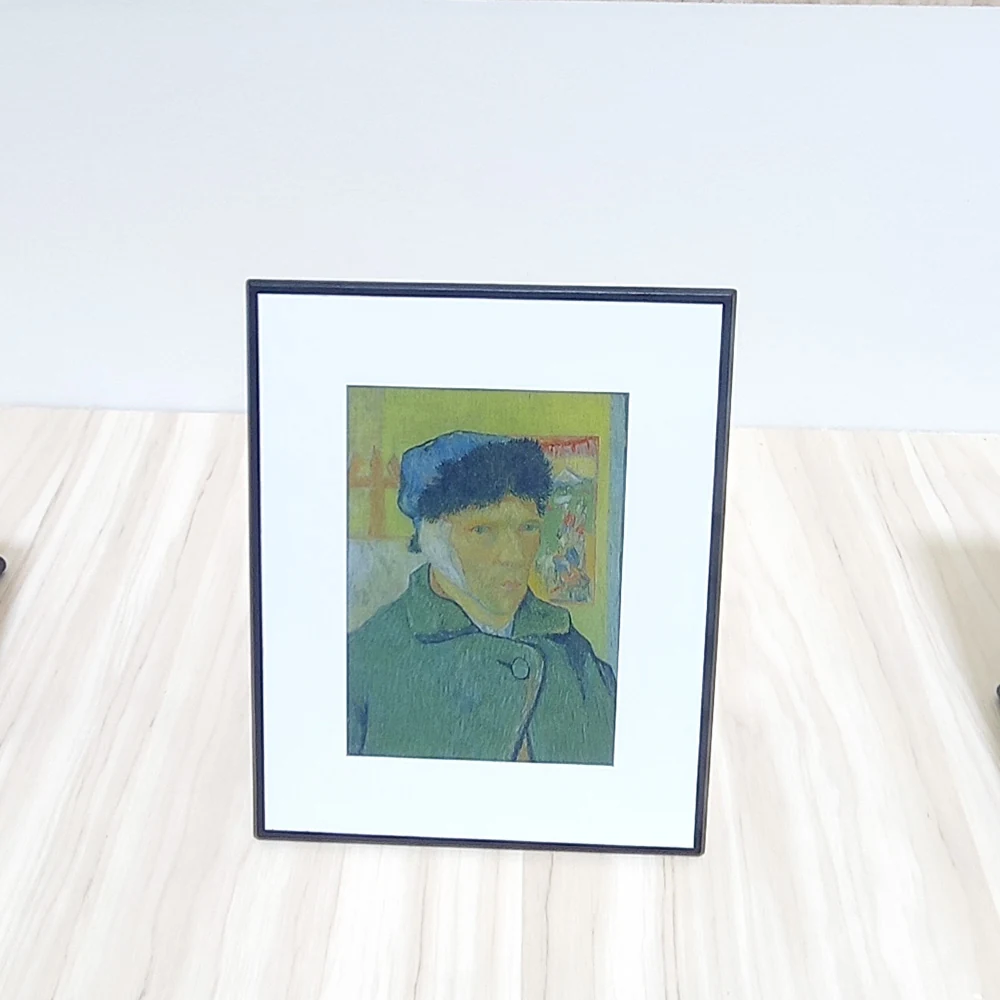

Canvas 7.09 Insert
A high-density 282 ppi color display insert for close viewing and custom frames. Available for engineering evaluation while reliability qualification continues.
Evaluate the right configuration.
DVT engineering sample
DVT samples for evaluation. Production release and batch timing require confirmation after reliability qualification.
Request Sample Quote · Hardware, options and delivery itemized separately.
Compare all models
Download specification · PDFSpecifications
| Model | AES-0709V |
|---|---|
| Display | E Ink Spectra 6 |
| Diagonal | 7.09″ |
| Resolution | 1200 × 1600 |
| Aspect ratio | 3:4 |
| Pixel density | 282 ppi |
| Active display area | 108 × 144 mm |
| Unit dimensions | 185 × 149 × 14 mm |
| Power | 5,000 mAh rechargeable battery; USB-C |
| Image updates | Wi-Fi app push or TF card; Bluetooth 5.0 |
Dimensions & installation
Confirm the mechanical drawing and installation accessories before ordering.
Included in the configuration
- ABS + PC display insert, battery and agreed factory firmware
- TF-card slot; card not included
- Decorative outer frame is separate
Project options
- Branding and integration scope on request
Content updates for this model
Wi-Fi app push or TF card; Bluetooth 5.0
Your content, this device
Test image rendering and a complete refresh using the selected sample and firmware.
Confirm software and compatibility
App availability, scheduling, gateways, groups and API access depend on this model and the agreed package; they are not common standard features across the range.
MagiRealm
The planned content engine is separate from the supplied device app and is not part of the hardware commitment.
Before your sample or project order
A retained image does not need continuous panel power. The controller and wireless connection can still consume power. Battery runtime depends on firmware, refresh frequency and connectivity. Confirm current certification, warranty and software scope for the ordered configuration.
Can I request one sample?
DVT samples for evaluation. Production release and batch timing require confirmation after reliability qualification.
Does the price include software and shipping?
The quotation separates hardware, optional software, customization and delivery. Sample pricing is confirmed for the selected configuration; freight, insurance and destination taxes are not implied.
Can it play video or rapid slideshows?
No. Color E-Ink is intended for still images and low-frequency changes. Ask to see a full refresh with your artwork before choosing it for time-sensitive signage.
Are scheduling and fleet management standard?
Not across every configuration. These functions require a confirmed software package and demonstration. Roadmap features are not included in the hardware promise.
Tell us what you want to display.
We will align the model, quantity, destination and delivery scope.
