Canvas 13.3 Insert
A 16 mm display insert for frame brands and integrators. Keep your own outer frame, mounting design and software ecosystem while sourcing the display core.
Evaluate the right configuration.
Sample / project quotation
Request a standard insert sample or a project quotation. Custom outer frames, software and freight are scoped separately.
Request Sample Quote · Hardware, options and delivery itemized separately.
Compare all models
Download specification · PDFSpecifications
| Model | AES-1330V |
|---|---|
| Display | E Ink Spectra 6 |
| Diagonal | 13.3″ |
| Resolution | 1600 × 1200 |
| Aspect ratio | 4:3 / 3:4 |
| Pixel density | 150 ppi |
| Active display area | 202.8 × 270.4 mm |
| Unit dimensions | 242.11 × 309.71 × 16 mm |
| Power | 5,000 mAh rechargeable battery; 10,000 mAh option |
| Image updates | Wi-Fi image push and TF-card image import |
Dimensions & installation

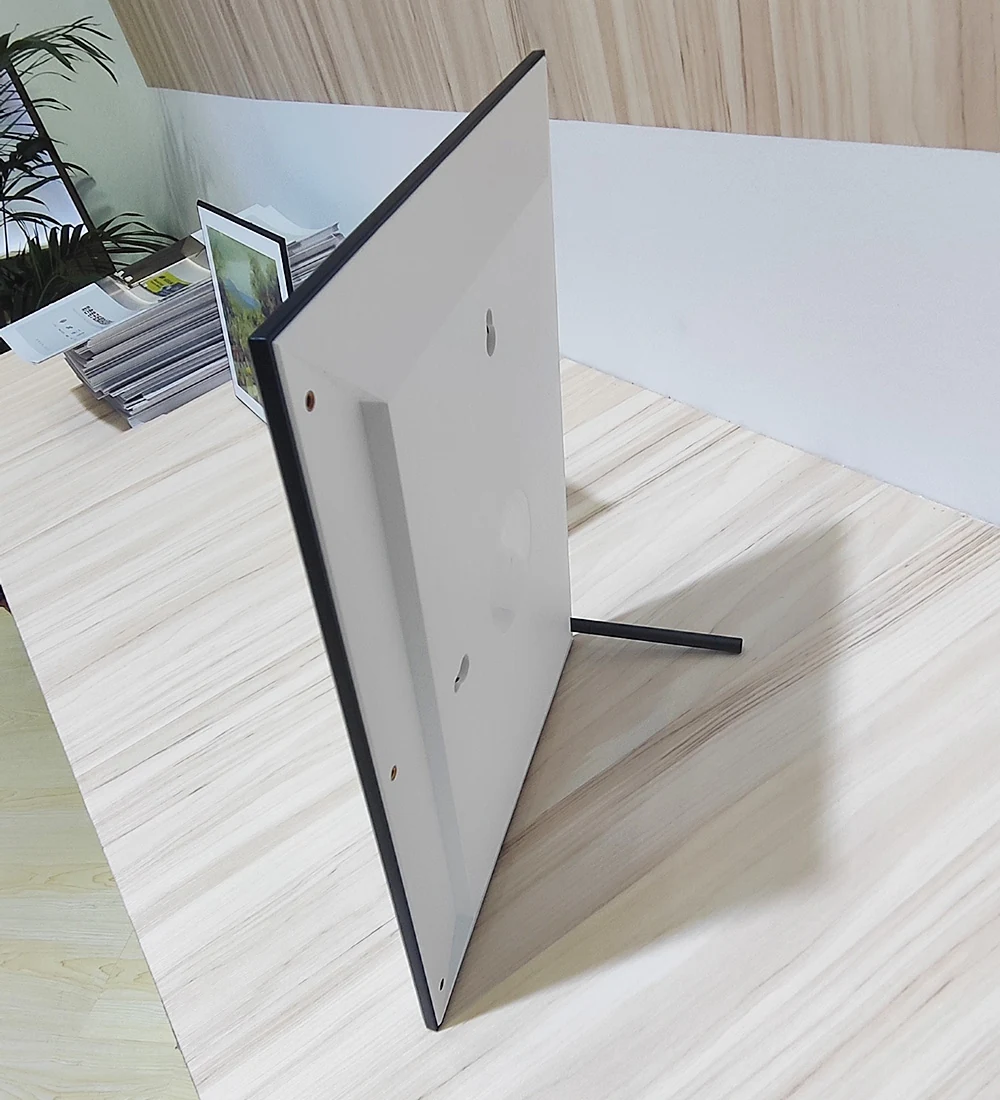

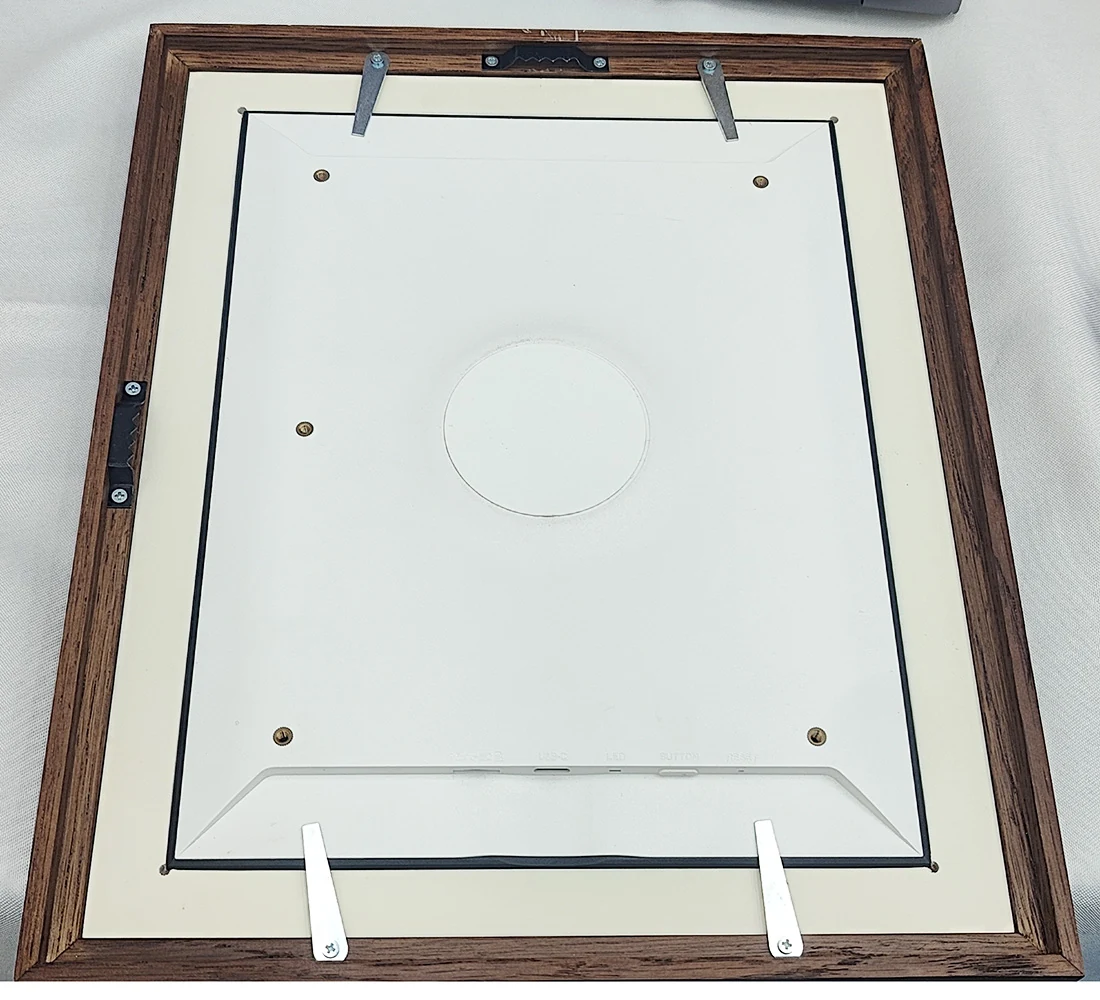

The insert has rear threaded mounting points and a keyhole slot. Confirm the mechanical drawing before designing your frame. A 13.3-inch display is not ISO A4 paper size.
Included in the configuration
- 13.3-inch Spectra 6 display and ABS + PC insert
- Battery, control electronics and factory firmware

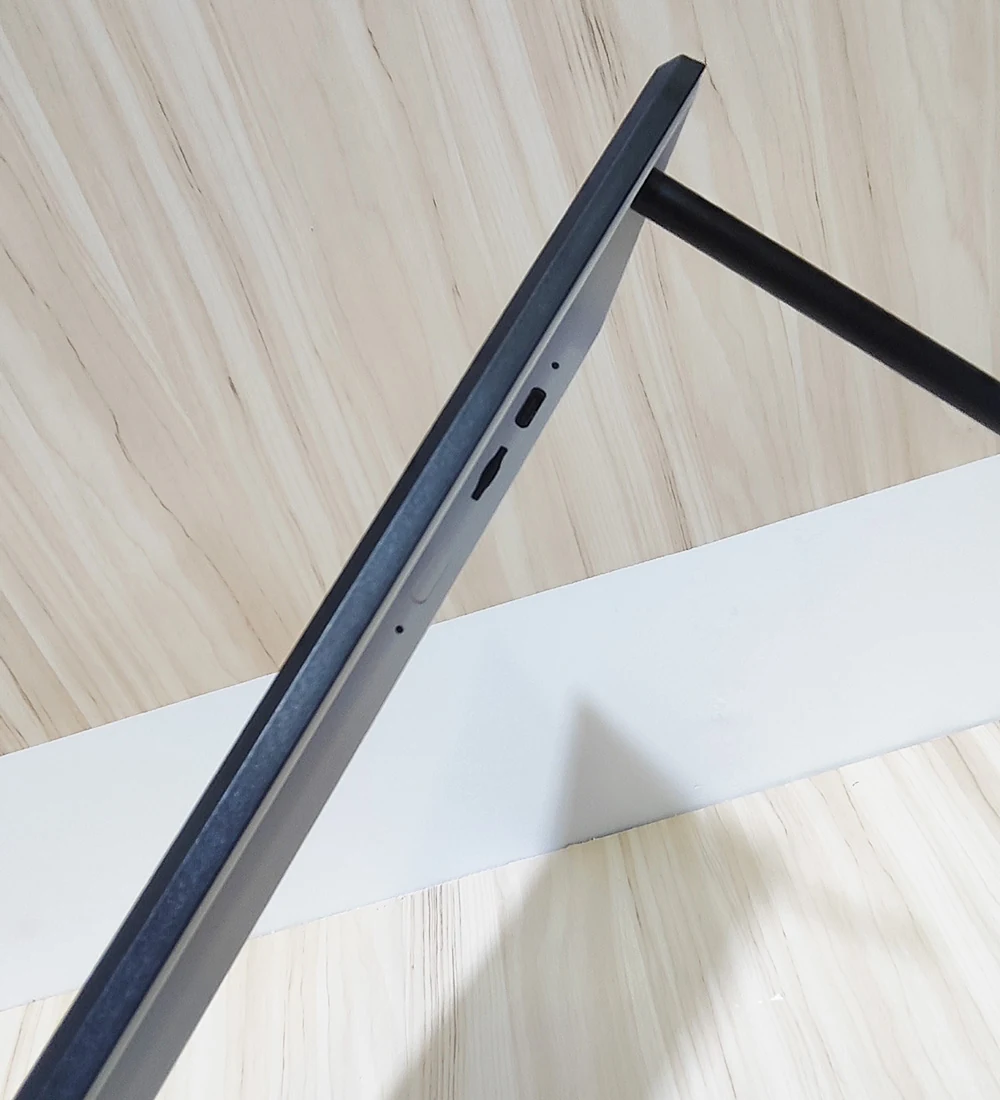

- USB-C charging port and TF-card slot
- Outer decorative frame is not included
Project options
- Outer frame color, finish and mounting design
- 10,000 mAh battery
- Customer firmware and own-server integration
- Alternative communication or power configurations
Content updates for this model
Wi-Fi image push and TF-card image import
Your content, this device
Test image rendering and a complete refresh using the selected sample and firmware.
Confirm software and compatibility
App availability, scheduling, gateways, groups and API access depend on this model and the agreed package; they are not common standard features across the range.
MagiRealm
The planned content engine is separate from the supplied device app and is not part of the hardware commitment.
Before your sample or project order
A retained image does not need continuous panel power. The controller and wireless connection can still consume power. Battery runtime depends on firmware, refresh frequency and connectivity. Confirm current certification, warranty and software scope for the ordered configuration.
Can I request one sample?
Request a standard insert sample or a project quotation. Custom outer frames, software and freight are scoped separately.
Does the price include software and shipping?
The quotation separates hardware, optional software, customization and delivery. Sample pricing is confirmed for the selected configuration; freight, insurance and destination taxes are not implied.
Can it play video or rapid slideshows?
No. Color E-Ink is intended for still images and low-frequency changes. Ask to see a full refresh with your artwork before choosing it for time-sensitive signage.
Are scheduling and fleet management standard?
Not across every configuration. These functions require a confirmed software package and demonstration. Roadmap features are not included in the hardware promise.
Tell us what you want to display.
We will align the model, quantity, destination and delivery scope.
