Canvas 3.7 Badge / Magnet
A thin color display offered as a name badge or magnetic tile. Choose the edition and verify access-control integration separately.
Evaluate the right configuration.
Sample / project quotation
Request sample availability and a configuration-specific quotation. Lead time and certification documentation are confirmed before ordering.
Request Sample Quote · Hardware, options and delivery itemized separately.
Compare all models
Download specification · PDFSpecifications
| Model | AES-0370V |
|---|---|
| Display | E Ink Spectra 6 |
| Diagonal | 3.7″ |
| Resolution | 480 × 720 |
| Aspect ratio | 2:3 |
| Pixel density | 236 ppi |
| Active display area | To be confirmed |
| Unit dimensions | 62 × 95.3 × 3.3 mm; 32.9 g |
| Power | 100 mAh rechargeable battery; Qi charging |
| Image updates | Bluetooth 5.1 phone app; gateway workflow by project |

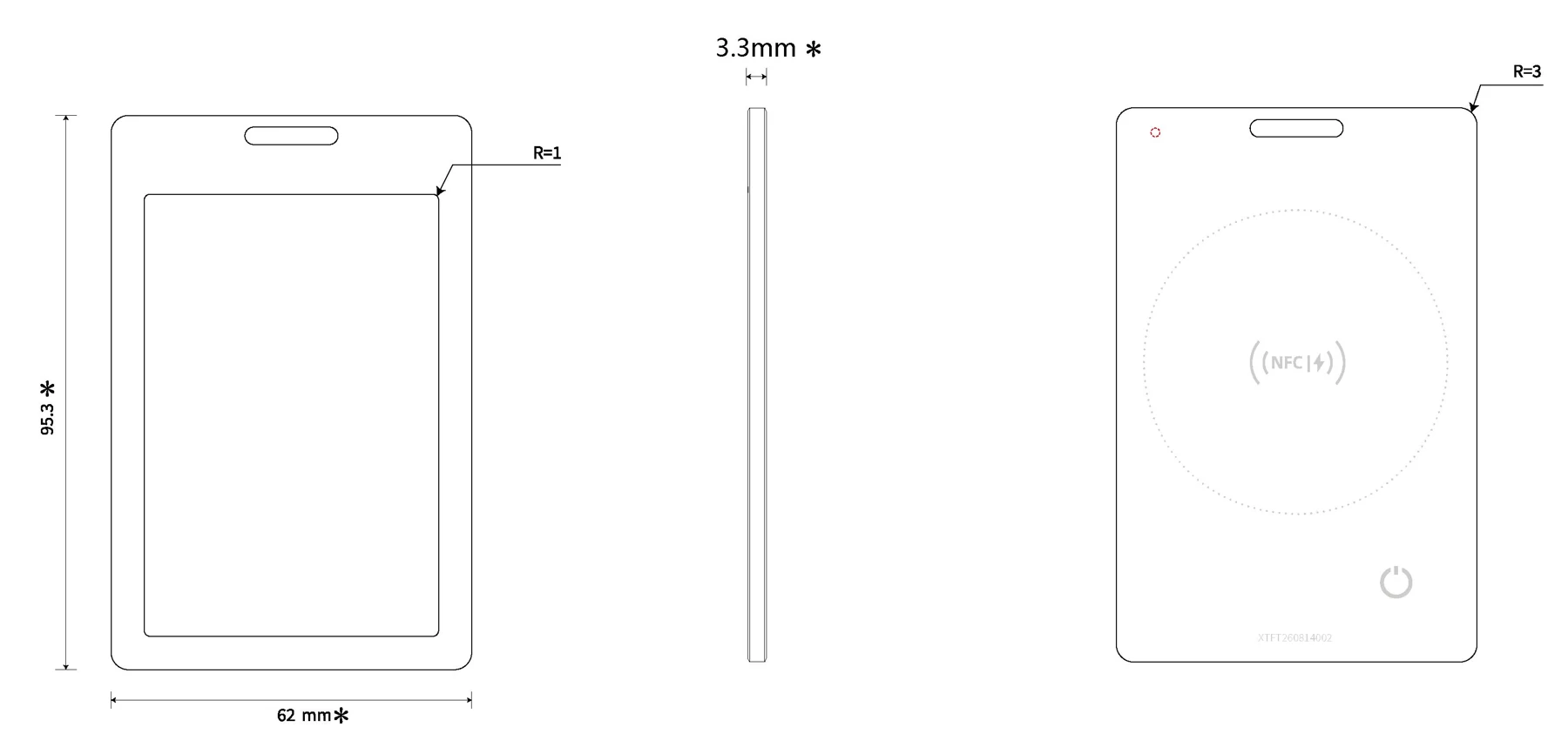

Dimensions & installation
Confirm the mechanical drawing and installation accessories before ordering.
Included in the configuration
- Badge or magnetic edition, selected in the quote
- Rechargeable battery
- NFC configuration and access-system compatibility confirmed separately
Project options
- Branding and integration scope on request
Content updates for this model
Bluetooth 5.1 phone app; gateway workflow by project
Your content, this device
Test image rendering and a complete refresh using the selected sample and firmware.
Confirm software and compatibility
App availability, scheduling, gateways, groups and API access depend on this model and the agreed package; they are not common standard features across the range.
MagiRealm
The planned content engine is separate from the supplied device app and is not part of the hardware commitment.
Before your sample or project order
A retained image does not need continuous panel power. The controller and wireless connection can still consume power. Battery runtime depends on firmware, refresh frequency and connectivity. Confirm current certification, warranty and software scope for the ordered configuration.
Can I request one sample?
Request sample availability and a configuration-specific quotation. Lead time and certification documentation are confirmed before ordering.
Does the price include software and shipping?
The quotation separates hardware, optional software, customization and delivery. Sample pricing is confirmed for the selected configuration; freight, insurance and destination taxes are not implied.
Can it play video or rapid slideshows?
No. Color E-Ink is intended for still images and low-frequency changes. Ask to see a full refresh with your artwork before choosing it for time-sensitive signage.
Are scheduling and fleet management standard?
Not across every configuration. These functions require a confirmed software package and demonstration. Roadmap features are not included in the hardware promise.
Tell us what you want to display.
We will align the model, quantity, destination and delivery scope.
